Automatic tag list
Tag main components, sub-components and pipes - the list writes itself, with no typos.
Process · Electrical · Network · Tagging
Spec-quality P&IDs at sketch speed.
Draw process, electrical and network diagrams as fast as you'd sketch them - and the tag list writes itself. Free in your browser, with no login, in 8 interface languages.
Free for now. No login, account, subscription or payment is required.
Free for now
Open the browser app directly. No login, account, subscription or payment.
Automatic tag list
Tag the components - the list writes itself, with no typos.
8 interface languages
Use the app interface in English, Danish, German, Spanish, French, Dutch, Norwegian and Swedish.
Screenshots
TaqDraw in action
Marketing views from the browser app: smart connections, 200+ engineering symbols and automatic tag lists.

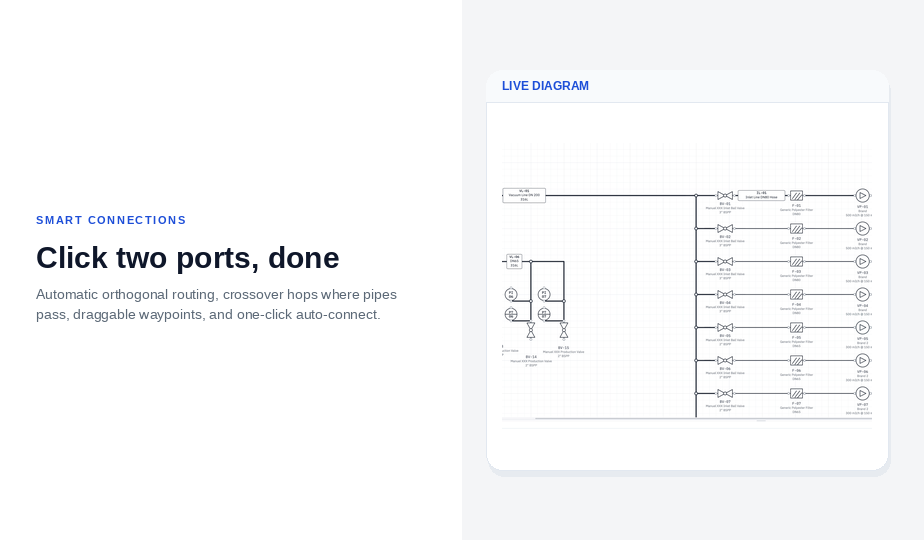

Click two ports and TaqDraw creates clean orthogonal connections with routing helpers.

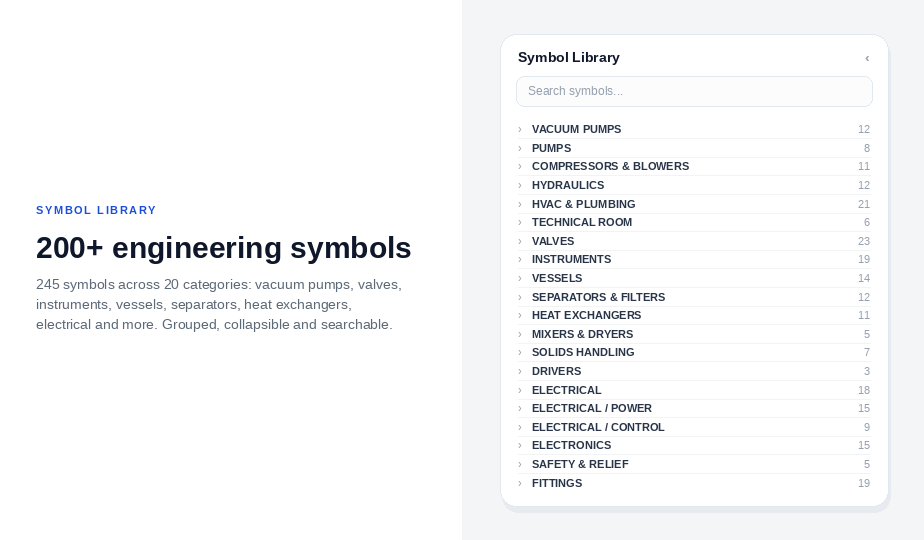

Searchable, grouped symbol libraries for vacuum pumps, valves, instruments, electrical symbols and more.

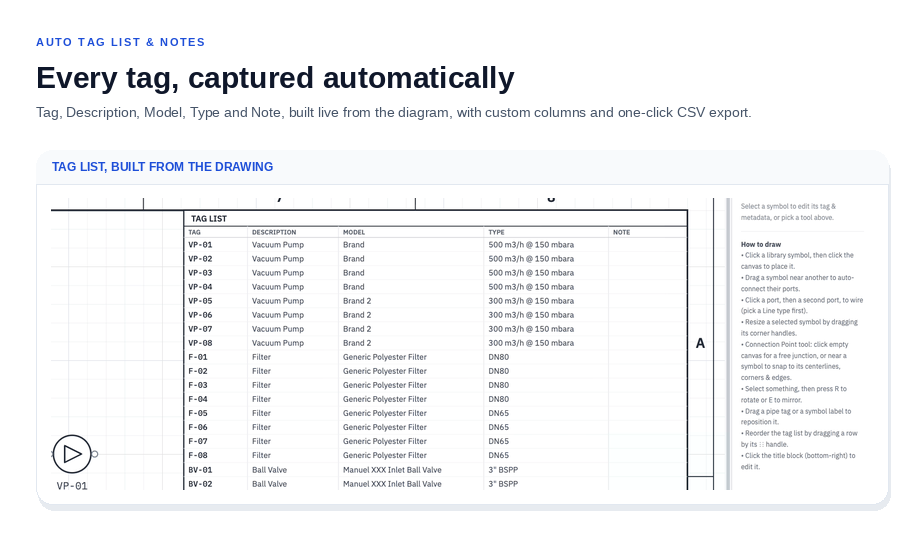

Every tag, description, model, type and note is captured directly from the drawing.
The problem
Diagrams and tag lists should be easy
Expensive CAD licenses and bloated tools for a simple job. Manual tag lists full of typos. TaqDraw makes it fast: draw your diagram, tag the components, and get the tag list generated automatically - no typing errors.
Features
All the right features
Not 1000 features. Just the ones you actually use.
Built-in symbol legend
A complete process and electrical symbol legend, standard symbols ready from the start.
Custom symbols
Build your own symbols so the library fits your practice.
Technical notes
Attach notes to individual components directly on the drawing.
Export anywhere
PNG, SVG, PDF and CSV - ready for reports, documentation or print.
Print the CSV tag list
Get the tag list onto paper or file in one click.
Intuitive - no training
Simple and fast. Saves keystrokes and errors from minute one.
Simple app access
Customers can open the browser app directly without extra Cloudflare or account-member setup.
Network diagrams
Draw the control network as well - routers, switches, firewalls, servers, racks - with Ethernet, fibre, wireless and VPN line types. The same tag list builds itself.
New · Quotes

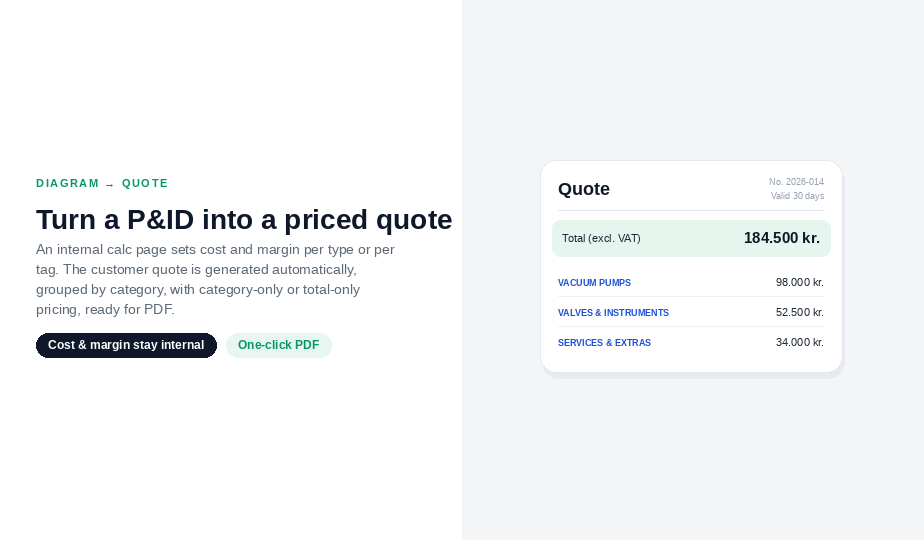

From diagram to quote - automatically
Price every tag once: on a private pricing page you enter the cost price and the margin you want. TaqDraw works out the sales price and carries it straight onto a printable quote. Your drawing becomes your quote.
Security
Your drawings stay on your computer
Your drawings are yours. TaqDraw runs in your browser, and your diagrams are not published to any public project database.
- Open the public TaqDraw app directly - no login or account setup.
- Your project files remain under your control in the browser workflow.
- The public app currently requires no payment or subscription.
Founder story · Practical software
Built because simple P&IDs should not need heavy CAD
I got tired of firing up a heavy CAD seat just to draw a simple P&ID, so I built the tool I wanted: draw, tag, export, done.
TaqDraw focuses on the workflow process engineers actually repeat: quick diagrams, clean tags, useful exports and no unnecessary training.
TaqDraw is currently free: open the browser app directly and get back to the drawing.
Simple workflow
Clear drawing, tagging and export workflows from one focused tool.
8 languages
English, Danish, German, Spanish, French, Dutch, Norwegian and Swedish are available in the app interface.
Lean support
Focused help with product issues, not consulting or drawing review.
Free
Free to use
Open TaqDraw directly for fast diagrams, automatic tag lists and exports without a heavy CAD commitment.
Price
€0 while free access is active. No payment details required.
Focus
Process, electrical and network diagrams, tagging and export.
Access
Open the public browser app directly - no login, registration, subscription or checkout.
TaqDraw is free for now. The access model may change later, but no payment is required today.
How it works
How it works
Draw
Drag process, electrical and network symbols from the built-in legend - or create your own.
Tag
Tag main components, sub-components and pipes. Add technical notes wherever you like.
Export
PNG, SVG, PDF - and an automatic CSV tag list, ready to print.
FAQ
Questions & answers
Is TaqDraw free?+
Yes. TaqDraw is currently free to use with no login, account, subscription or payment required.
How does access work?+
Open the public app link and start drawing. No login or checkout is required.
Will TaqDraw always be free?+
TaqDraw is free for now. The access model may change later; any future paid offer will be shown before payment is required.
What does it include?+
The free browser app includes diagramming, tagging, automatic tag lists and exports.
Is this a download?+
TaqDraw runs as a browser app rather than a public software download.
Which languages are available?+
The app interface supports English, Danish, German, Spanish, French, Dutch, Norwegian and Swedish.
How will support work?+
Support covers product access problems and reproducible product issues. It does not include custom engineering, drawing review or consulting.
Where are terms and support?+
Terms, privacy, refund and support pages are linked in the footer.
Does it work on Windows and Mac?+
Yes - it runs in a modern browser (Chrome, Edge, Safari) on both.
Process · Electrical · Network · Tagging
Start drawing for free
Open TaqDraw directly for process, electrical and network diagrams, with automatic tag lists and exports.
Open TaqDrawNo login, registration, subscription or payment required.
